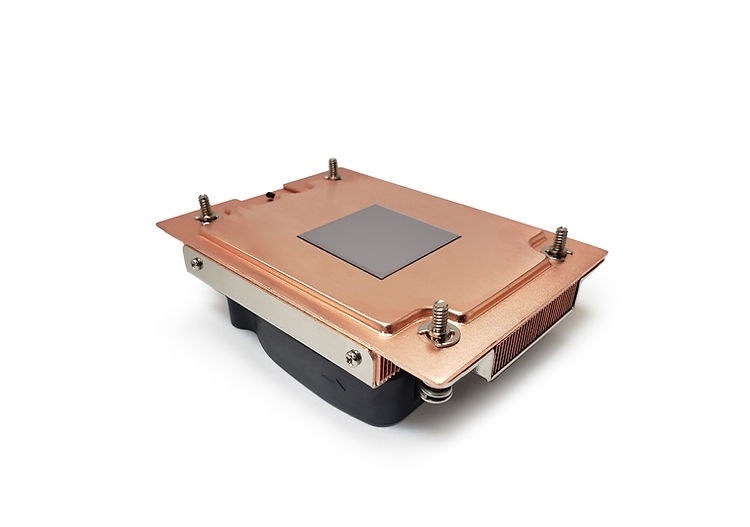

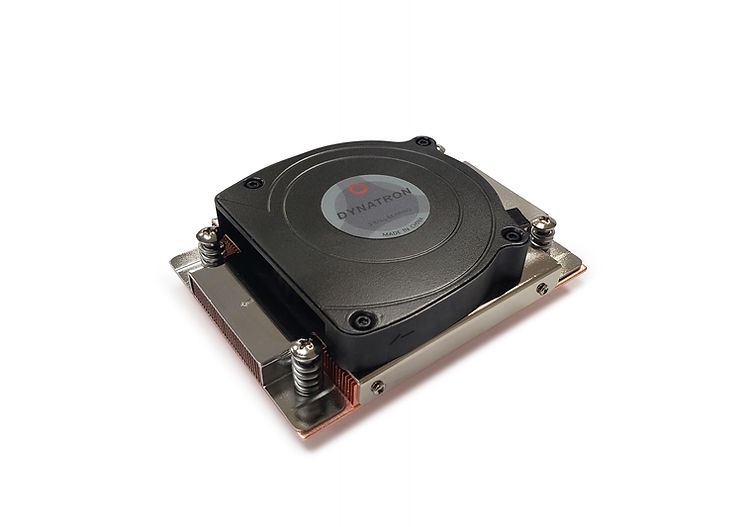

Dynatron Fan A45 1U active heatsink Copper Fin for Socket AM4/AM5 Brown box

CPU Socket
AM4/AM5

Solution
1U Server and up

Material
Copper Fin + Vapor Chamber

Speed
At Duty Cycle 0-20%: 2000+/- 200 RPM
At Duty Cycle 50%: 4900+/- 10% RPM
At Duty Cycle 100%: 8700+/- 10% RPM

Bearing
Double Ball

Rated Voltage
12V

Power
At Duty Cycle 0-20%: 1.08 W
At Duty Cycle 50%: 4.7 W
At Duty Cycle 100%: 23.45 W

Air Flow
At Duty Cycle 0-20%: 5.59 CFM
At Duty Cycle 50%: 14.76 CFM
At Duty Cycle 100%: 26.25 CFM

Noise Level
At Duty Cycle 0-20%: 23.3 dBA
At Duty Cycle 50%: 43.5 dBA
At Duty Cycle 100%: 62.2 dBA

Air Pressure
At Duty Cycle 0-20%: 3.69 mm-H2O
At Duty Cycle 50%: 25.28 mm-H2O
At Duty Cycle 100%: 89.80 mm-H2O

Lead Wire Pin Out
Pin1- (-)
Pin2- (+)
Pin3- (Techometer/Signal output)
Pin4- (PWM)

Note: All product specifications and product images are subject to change without notice.

Weight
1.5 lbs

Warranty Information
1 Year
