USB 3.0 to M.2 SATA External SSD Enclosure with UASP

The SM2NGFFMBU33 external USB 3.0 to M.2 (NGFF) enclosure turns your SATA M.2 solid state drive into a portable, high speed USB 3.0 drive.

Get higher external performance by using an M.2 SSD in place of a platter drive, harnessing the full potential of your USB 3.0 computer system. The enclosure supports UASP, enabling you to achieve transfer speeds up to 70% faster than traditional USB 3.0 when used with a UASP-enabled host computer.

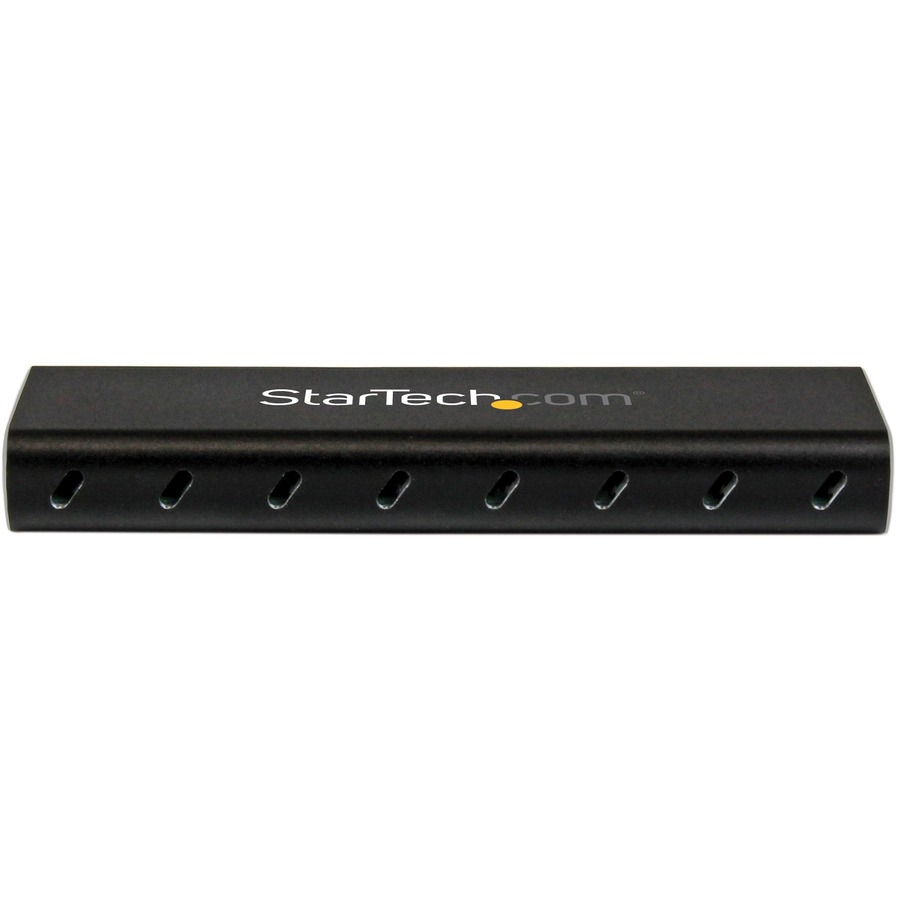

This slim, pocket-sized SSD enclosure has been specifically engineered for mobility. The enclosure features a lightweight yet durable design, which fits easily into your pocket or laptop bag. For further convenience, the enclosure is powered entirely using the USB host bus and requires no external power adapter.

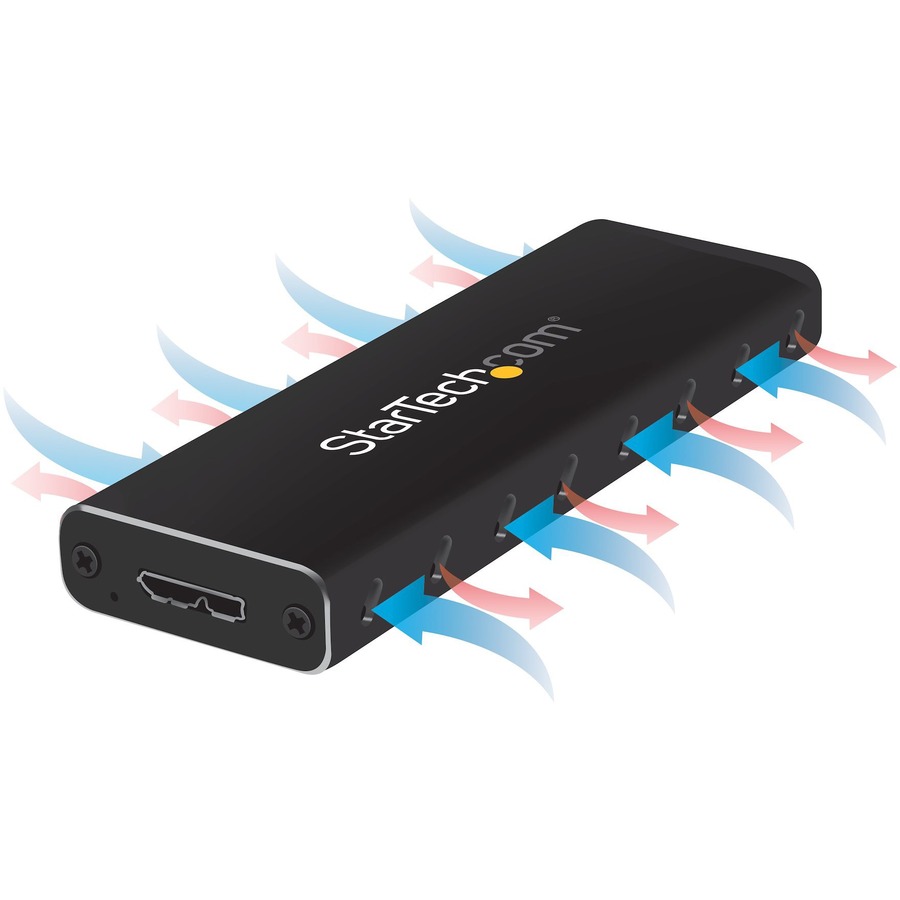

Durable aluminum construction helps to ensure your drive won’t be damaged while you’re on the move. Plus, to maximize heat dissipation the enclosure features specially engineered ventilation holes which help maintain a cooler operating environment for optimal performance and a longer life span for your drive.

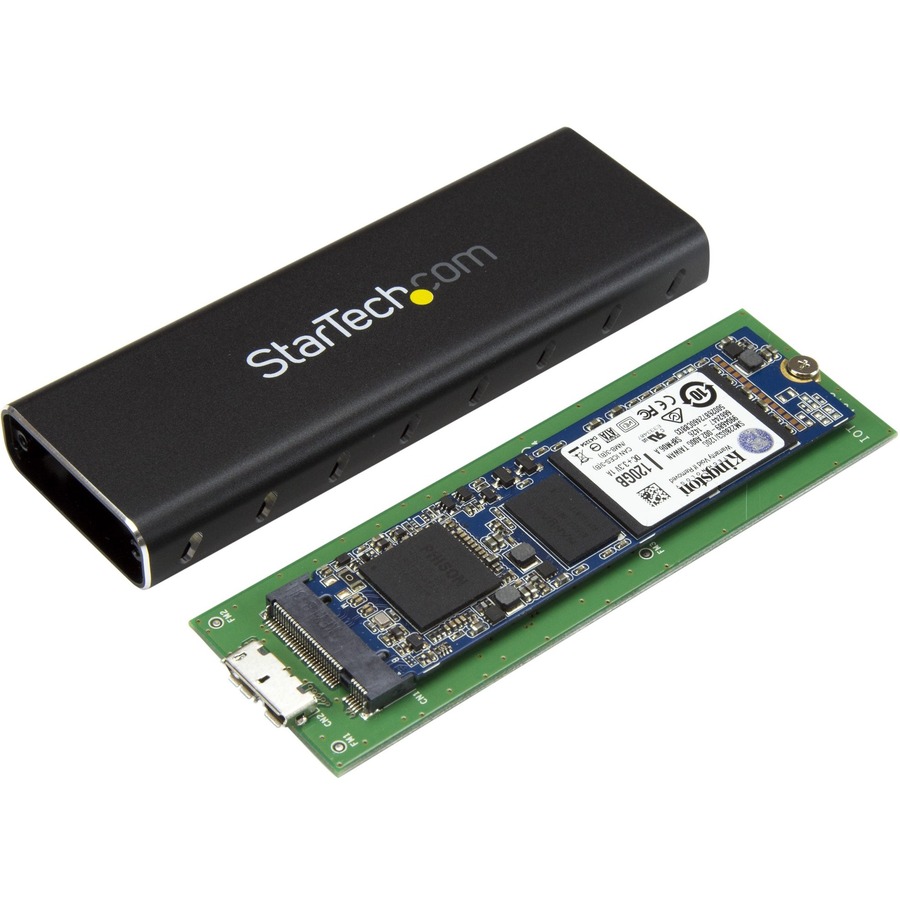

For wide compatibility with all of the common M.2 solid state drives, the enclosure can mount multiple drive heights including: 2242, 2260, and 2280.

The M.2 enclosure is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Improved Performance with UASP

UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.

At the same peak in testing UASP also shows an 80% reduction in required processor resources.

Testing results were obtained using an Intel® Ivy Bridge system, a UASP enabled StarTech.com Enclosure, and a SATA III solid state drive.

More from the Manufacturer

More from the Manufacturer

1 Each

Drive Enclosure

1

No

1

No

Yes

• SATA/600
• M.2

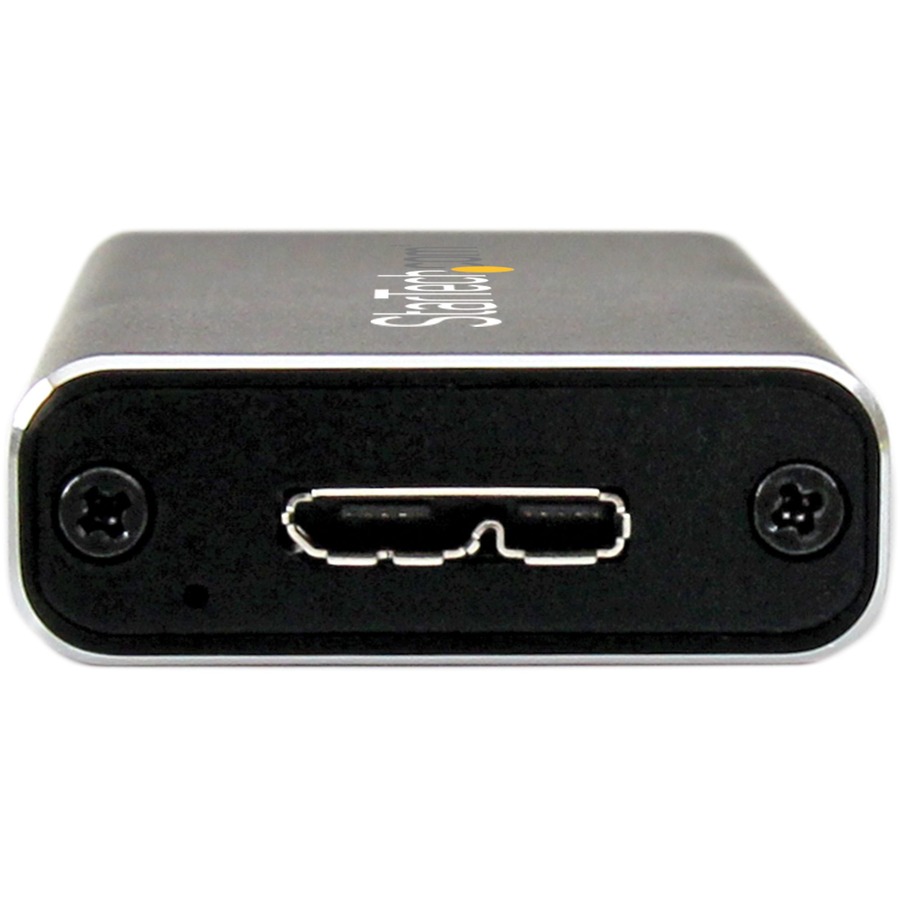

USB 3.0 Micro-B

Black

Black

Aluminum

External

0.60″ (15.24 mm)

1.40″ (35.56 mm)

3.90″ (99.06 mm)

1.76 oz (50 g)

• USB 3.0 to M.2 SATA External SSD Enclosure with UASP
• 1 x USB 3.0 Cable
• 1 x SSD screw kit
• 1 x Mini Screw Driver
• 1 x Instruction Manual

Taiwan

Yes

Yes

• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

2 Year
